Engine Loom Essential Connector Set - Toyota 'Beams' 3S-GE

$ 235.00$ 269.00

Incl. Tax (NZ Customers)

Excl. Tax (International Customers)

Engine Loom Essential Connector Set - Toyota 'Beams' 3S-GE

Description

Engine Loom Essential Connector Set – Toyota ‘Beams’ 3S-GE



This connector set includes the essential engine connectors required to make a new wiring harness for a Toyota Beams 3S-GE engine when using an aftermarket wire-in ECU such as a Link G4X StormXLink G4+ Fury or similar with the factory air flow meter removed.

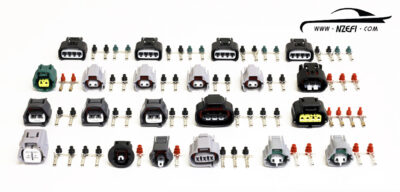

This connector set includes:

  • 4 x Fuel injector connectors (3 variations available – see notes below)
  • 4 x Ignition coil connectors
  • 2 x VVTi Solenoid connectors
  • 2 x Camshaft position sensor connectors
  • 1 x Crankshaft position sensor connector
  • 1 x Alternator connector
  • 1 x Water temperature sensor (ECT sensor) connector
  • 1 x Knock sensor connector
  • 1 x Oil pressure switch connector
  • 1 x Vehicle speed sensor connector



If the factory electronic throttle is retained, the following connectors to suit are available as a variation:



  • 1 x Throttle position sensor connector
  • 1 x Accelerator pedal position sensor connector
  • 1 x Electronic throttle motor connector



All connectors come with connector housing, terminals and seals.



As this set consists of the just the essential engine wiring connectors required for using with an aftermarket ECU, other engine wiring loom connectors such as the factory oxygen sensor connector and AFM/MAF connector are not included.



Injector Connector Variations:



There are 3 possible fuel injector connector types that can be supplied with your connector set. Simply select the variation at the top of this page that suits your injectors:



  • Denso high tag connector – Suits factory Beams 3S-GE fuel injectors, ID2000 injectors and more.

    Denso high tag Fuel Injector Plug
    Denso high tag Fuel Injector Plug



  • Bosch EV1 connector – suits many aftermarket injectors including Bosch 440cc, Siemens 666cc, Siemens 875ccBosch 1000cc/min injectors and more.

    Bosch EV1 Injector Plug
    Bosch EV1 Injector Plug



  • USCar (EV6) connector – Suits Bosch 550cc/min injectors, ID1000 injectors and many more.

    Delphi USCar Fuel Injector Plug
    Delphi USCar Fuel Injector Plug





Please check the shape and keying of your original connectors before purchasing!

Additional information

Weight 600 g
Make

Part Type

Uses
