Link Part #WRX9X (SKU: 229-4000)
The Link G4X range of engine management systems builds upon the previous G4+ ECUs by featuring an all new micro-processor, an upgraded communications chip and expanded data logging. These improvements allow for a more responsive and accurate tune, much faster download speeds and far greater internal data logging capacity.
The Link G4X range of engine management systems are well known for delivering class-leading performance without sacrificing factory levels of drivability. The G4X plug-in ECUs are designed to be the most complete plug-in solution yet.

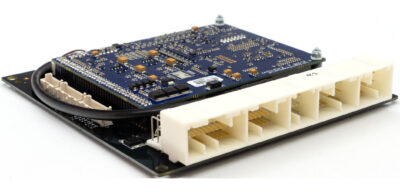

This V7-9 WRX/STI plug-in ECU will save you time and money as it will plug straight into the vehicle’s original wiring loom without the need for messy adapter harnesses. It replaces the original circuit board inside the factory ECU enclosure and mounts using the factory brackets.
This Link G4X Subaru WRX/STI plug-in ECU is suitable for the models listed below:
Subaru Impreza Version 7-9 WRX & STI Impreza WRX & STI (GD/GG chassis, MY2000-2007 with cam control. 2.0L models only)
Once the installation is complete, the Link G4X allows a good tuner to achieve an optimal state of tune to get the most out of any combination of modifications.
All Link G4X plug-in ECUs come with a base map. While these maps are designed to help save time for you and your tuner, it is essential that these are used simply as a starting point for further tuning.
The engine can easily be converted to speed density by removing the air flow meter and instead using a suitable MAP and air temperature sensor. Likewise, this ECU can also be setup to control boost electronically with in-cabin adjustment. This eliminates the need to purchase a separate electronic boost control system.
The vehicle’s original sensors & actuators are used except for the following exceptions:
- MAP sensor – For all models the factory MAP sensor is supported. These sensors are capable of measuring up to 1.64Bar (23.5psi) boost. If more boost is intended to be used a higher rated MAP sensor can be connected to the existing wires. The airflow sensor is not required.
- Inlet Air Temp sensor (IAT) – An appropriate IAT sensor (available separately), should be installed just prior the throttle body even on Spec C models that typically have a factory fitted IAT sensor in the inlet manifold. The factory IAT wiring can be used on models that have a factory fitted IAT sensor. On all other models the IAT sensor can be wired via the expansion connector on the ECU using the XS loom.
- Boost control – The factory boost solenoid control wiring is used, however the boost solenoid must be upgraded on applications using an external wastegate or elevated boost levels (these are available from NZEFI).
- Injectors – The G4X plug in is NOT designed to be used with low impedance injectors. All the Subaru models this G4X plug-in is designed for use high impedance injectors so no changes are necessary. However if low impedance aftermarket injectors have been fitted then the correct ballast resistors MUST be fitted. These are available from NZEFI.
Extra sensor inputs
The expansion connectors on the Link G4X board is provided to allow the easy connection of additional ECU inputs. The two expansion connectors on this particular plug-in model provides the following:
- 5V Supply
- Sensor Ground
- 3 digital inputs
- 6 analogue voltage inputs
- 1 analogue temperature input
These may be used for such functions as driver adjustable boost control, and for additional sensors such as wideband lambda input, an alternative method of connecting the map sensor, fuel pressure, oil pressure (the G4X can take steps to protect the engine if these fall out of bounds).
Any redundant outputs may be reconfigured & used for alternative uses, eg extra electric fans, intercooler water spray, shift light, water injection.
In addition to the ECU which can be purchased separately, we also offer the following packages:
Basic ECU Package:
Turbo ECU Package:
- Link WRX9X ECU
- Link XS Loom
- IAT Sensor, Plug and Weld-on Boss
- High-precision Electronic Boost Control Solenoid
- Toggle Switch with Missile Cover
Please select the appropriate package from the drop down menu.
