Description

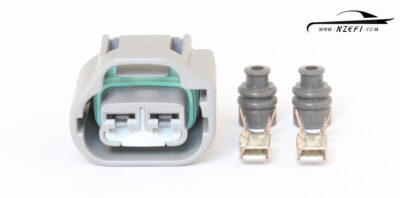

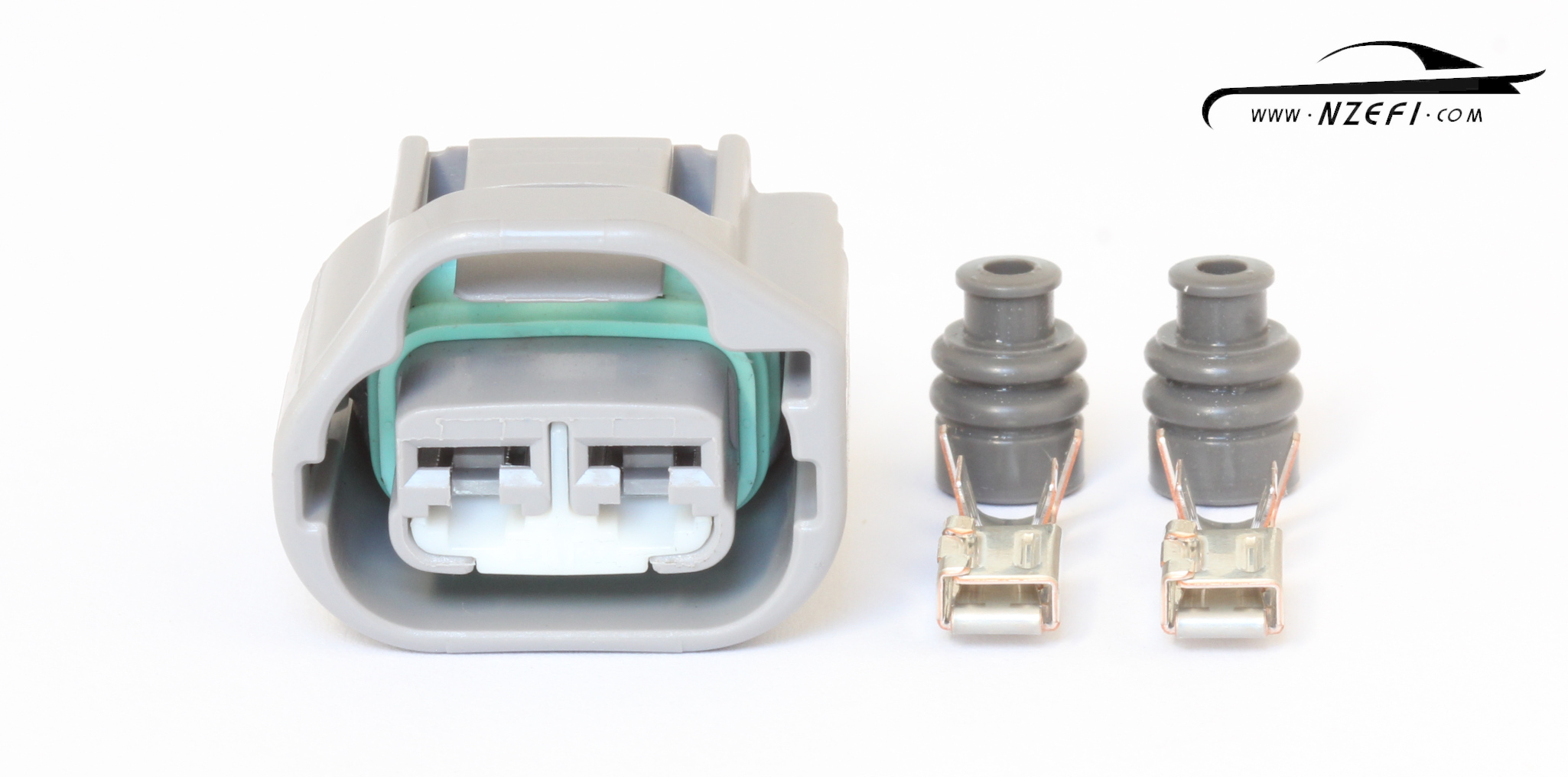

2-Pin Toyota Air Conditioning Condenser Fan Motor Connector – Common ‘Side keying’ Version

There are two common Toyota/Lexus A/C fan connectors. This one has a rectangular shape with rounded corners and keying/indexing on the side of the housing to suit the following male connector:

Male terminal tab width is 4.8mm.

Fits a wide range of 1990’s and 2000’s Toyota and Lexus models including JZA80 Supra, AE111 Levin and more. Examples of cooling fan motors that it suits are Toyota part numbers 16363-64080, 88550-32110 and 88550-12160.

NB: The other common Toyota A/C (and auxiliary cooling) fan motor connector is oval shaped with 2 keys on the bottom of the housing:

The mating connector to suit the oval variant pictured to the left is available here.

Connector comes with connector housing, terminals and seals.

Please check your original connector’s shape and keying before purchasing!
