Pierburg 250LPH In-Tank Low Pressure Lift Pump
This genuine Pierburg / TI Automotive universal in-tank low pressure fuel pump is mounted inside the main fuel tank and can either feed fuel to a surge tank or an external high pressure fuel pump directly. It can also be used as a transfer pump to transfer petrol from one tank to another. It will not handle being run under any significant pressure, but for its intended application as a lift or pre pump it is ideal for many applications.

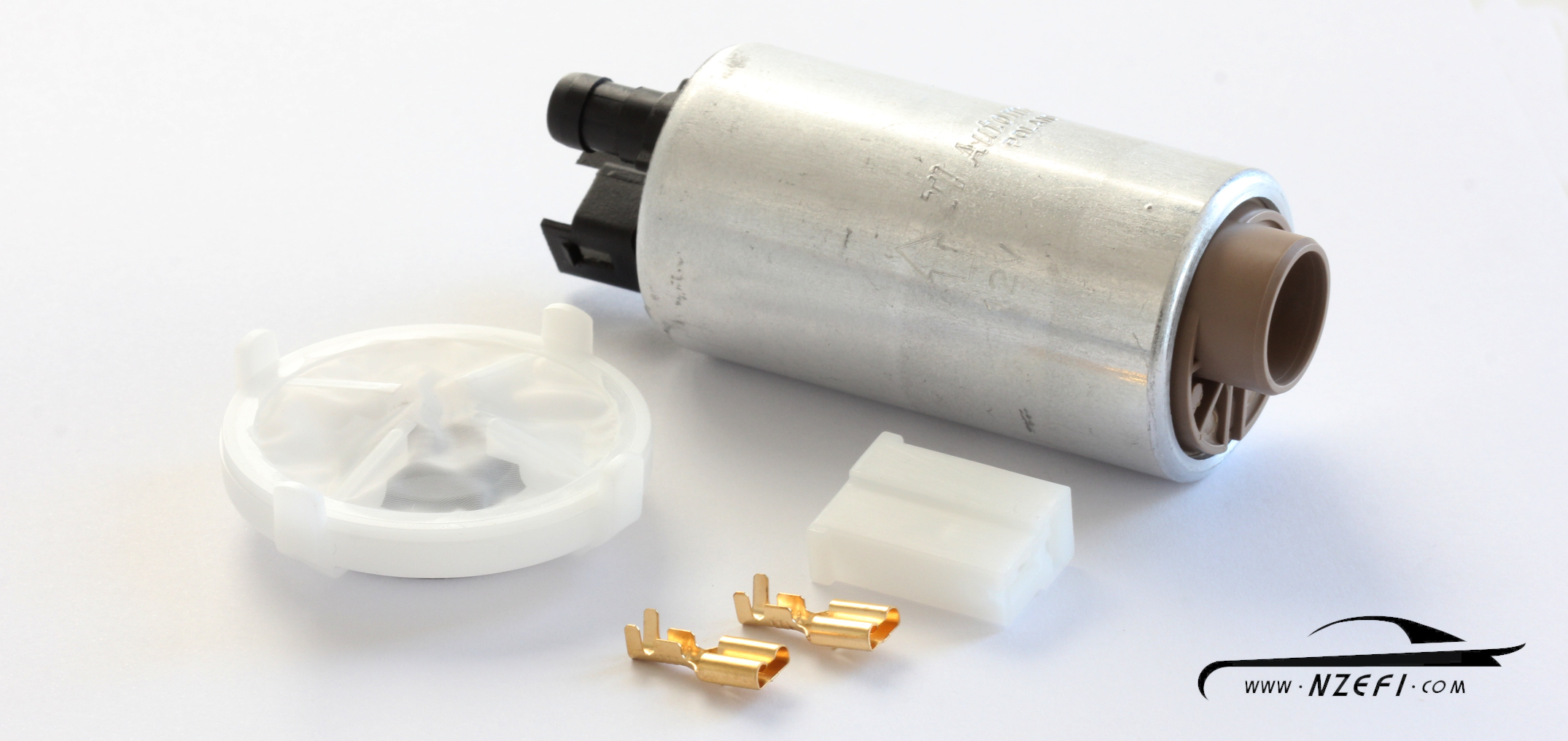

Fuel pump comes with a 55mm diameter round filter strainer and connector kit as pictured.
Specification:
| Flow rate (at 12V) | Approx. 250 L/hr @ Open Flow |
| Nominal Current Draw | 2 Amps |
| Fuel Compatibility | Gasoline, Ethanol Blends (E85 etc.) |
| Pump Diameter | 38mm |
| Overall Pump Length | 112mm (including filter) |
| Pump Outlet Diameter | 8mm |
