Oil Pressure Sensor 0-130 PSI

$ 160.00 Incl. GST (For NZ Customers) $ 139.13 Excl. GST (For International Customers)

Incl. Tax (NZ Customers)

Excl. Tax (International Customers)

In Stock

Oil Pressure Sensor 0-130 PSI

SKU 312-0002 Category Tags ,


This oil pressure sensor will allow a high-quality aftermarket engine management system to monitor oil pressure and take immediate action or sound alarms if a fault condition is encountered.


For example, on a Link G4+ or G4X the smart limits can be setup by entering the minimum oil pressures for each engine speed range. If the oil pressure drops below the threshold for the current engine speed, then the ECU can automatically limit the engine speed to any desired rpm (e.g limp home mode). Features such as this save engines time and time again. But in order to perform these features the ECU does need the appropriate oil pressure sensor.

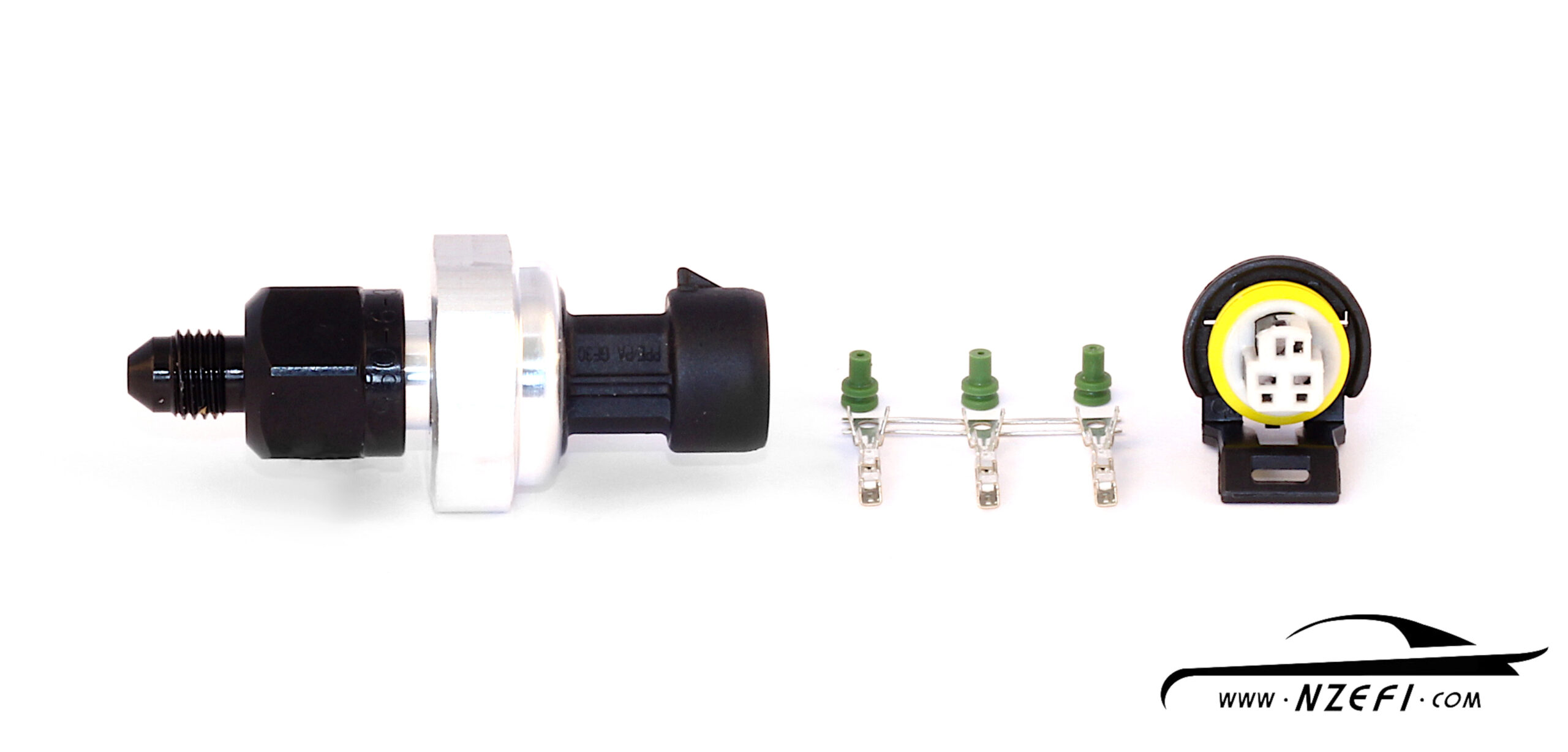

This oil pressure sensor is supplied with an adapter to male AN-3 and a Packard 3-pin connector. The plug housing and terminals are included. Most aftermarket ECUs allow the sensor calibration data to be entered via the tuning software. The linear calibration for this particular sensor is:


0.5V = 0 kPa (gauge)

4.5V = 896.3 kPa (gauge)


Note: We always recommend entering metric calibrations (pressure in kPa) into Link ECU’s which is required when transmitting data over CAN bus to external devices (dashes etc.). Even when entering sensor data into the ECU with metric units, data can still be displayed in PCLink either in metric or imperial as desired by the user (using the ‘U’ hot-key in PCLink). Likewise most dashes can be set up to display a range of units even if they are receiving data over CAN in metric units.

Additional information

Weight 80 g

Part Type
