Description

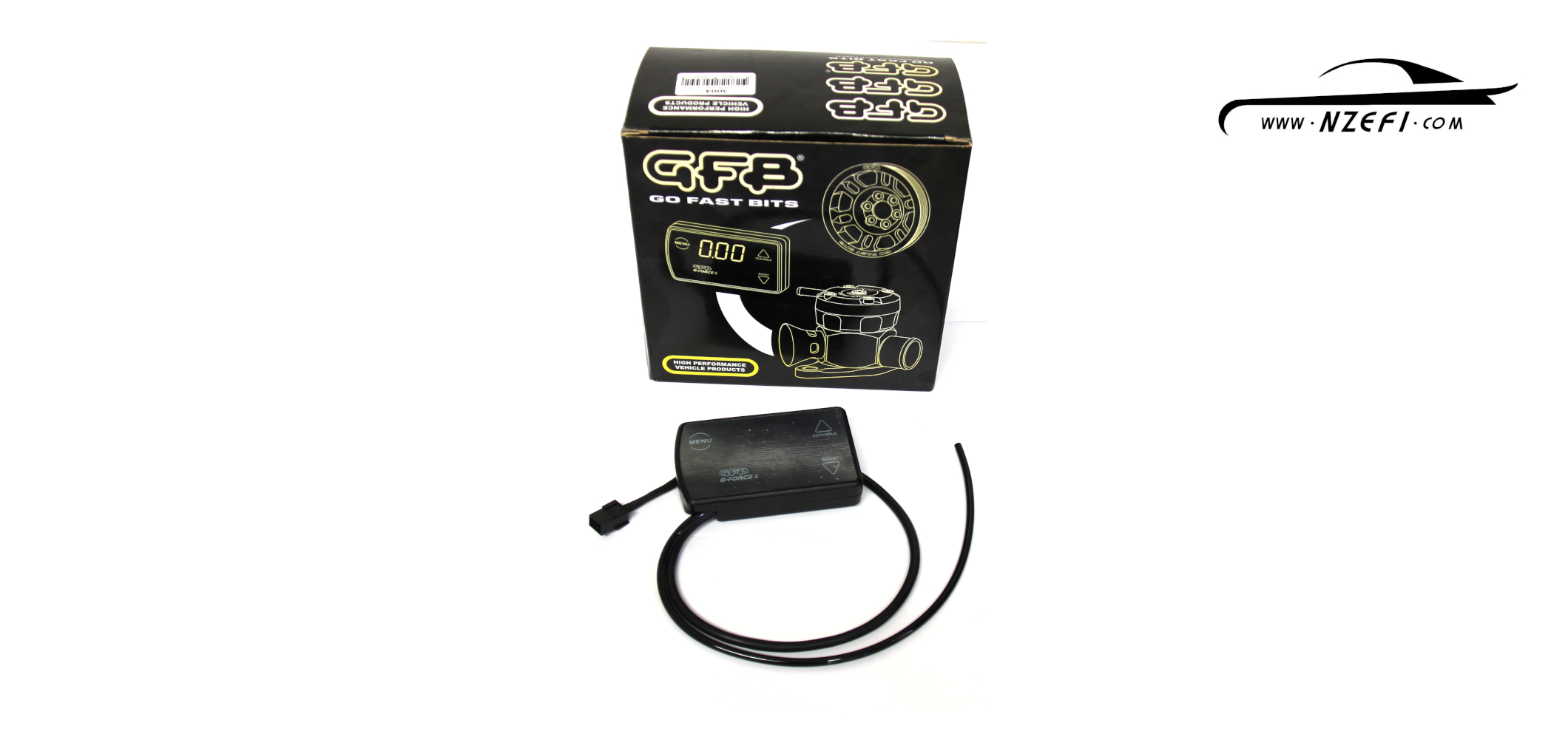

Go Fast Bits 3004 G-Force II Electronic Boost Controller
GFB G-Force II Electronic Boost Controller Specs:
* New closed – loop correction boost control
strategy for the fastest possible boost rise rate and minimum
boost drop-off at high RPM, the new closed loop logic
helps prevent boost variations that can occur in
different gears, RPM ranges and atmospheric
conditions
* Controls boost pressures up to 50psi (3.45 bar) – still class leading performance!
* 6 boost presets – individually programmable
you can program 6 different peak boost pressures and
rise rates, then select on-the-fly
* Improved scramble boost feature with auxiliary
remote switching scramble boost now uses a dedicated preset (instead
of a percentage increase) so that peak boost, rise rate,
and closed-loop control can be specifically tailored to
suit your scramble needs. You can now lower OR
increase boost pressure, AND change the spool-uprate,
all at the press of a button
*New peak-hold display shows the peak boost achieved after a boost run
* 6 different button colour options to match your car’s dash illumination
* Remote input trigger – connect the remote input wire to a switch, button, or
ECU output to change
* Real-time boost gauge, display in bar, psi or k Pa – choose the display units to suit your preference
* Real time vacuum display –now shows manifold vacuum as well as boost
* Over-boost warning/cut – user adjustable warning to indicate if the boost
pressure is too high and to cut the solenoid to
lower boost and protect the engine
