Toyota 1UZ-FE non-VVTi Engine Wiring Harness Essential Connector Set

Engine Loom Essential Connector Set – Toyota 1UZ-FE (non-VVTi)

Quantity discounts available

$235.00$249.00 incl. GST (for NZ customers)

$204.35 excluding GST (for international customers)

All prices in NZD.

Clear
SKU: N/A Category: Tags: , , , ,

Product Description

Engine Loom Essential Connector Set – Toyota 1UZ-FE (non-VVTi)



This connector set includes the essential engine connectors required to make a new wiring harness for a Toyota / Lexus 1UZ-FE engine (non-VVTi only) when using an aftermarket wire-in ECU such as a Link G4+ Storm Black or similar with the factory air flow meter removed.



This connector set includes:

  • 8 x Fuel injector connectors (3 variations available – see notes below)
  • 1 x Alternator connector (2 variations available – see notes below)
  • 1 x Idle control stepper motor connector (optional)
  • 2 x Ignition coil connectors
  • 1 x Crank angle sensor connector
  • 1 x Cam angle sensor connector
  • 1 x Throttle position sensor connector
  • 1 x Water temperature sensor (ECT sensor) connector
  • 2 x Knock sensor connectors
  • 1 x Oil pressure sender (gauge) connector
  • 1 x Water temperature (gauge) connector



All connectors come with connector housing, terminals and seals.



As this set consists of the just the essential engine wiring connectors required for using with an aftermarket ECU, other engine wiring loom connectors such as the factory oxygen sensor connector and AFM/MAF connector are not included. Note also that the ignition module (igniter) connectors are not included as the factory igniters are seldom retained on 1UZ-FE engine transplants.



The 6-pin idle control stepper motor connector is offered as optional with this connector set as some aftermarket ECU’s do not support idle control stepper motors, meaning the factory stepper motor becomes redundant in many cases. If your ECU doesn’t support an idle control stepper motor, you may also be interested in our Toyota 1UZ-FE Idle Speed Control Solenoid Conversion Kit



Injector Connector Variations:

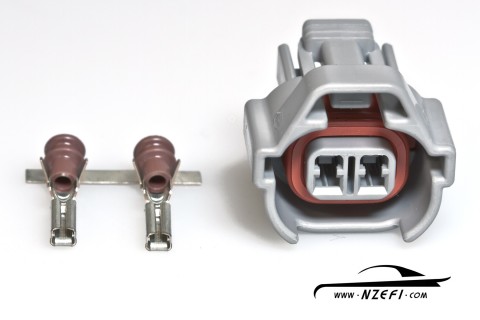

There are 3 possible fuel injector connector types that can be supplied with your connector set. Simply select the variation at the top of this page that suits your injectors:





Alternator Connector Variations



There are two possible alternator connector types that can be supplied with your connector set. Simply select the variation at the top of this page that suits your alternator:



    • Early round alternator connector.

      Toyota (early) 3-pin Round Alternator Connector

      Toyota (early) 3-pin Round Alternator Connector



  • Late oval alternator connector.

    Toyota 3 Pin Oval Alternator Connector

    Toyota 3 Pin Oval Alternator Connector
